产品简介
NACJ2400型冲击电压发生器主要用于电力设备如：电力变压器、互感器、组合电气合成绝缘子、避雷器等试品进行雷电冲击电压全波、雷电冲击电压截波、操作冲击电压波和陡波的冲击电压试验，检验绝缘性能。
1200kV／2400kV和4800kV系列冲击电压发生器可产生标准雷电全波，操作波和雷电截波三种冲击波形，1200kV系列冲击电压发生器可产生标准雷电波、操作波、雷电截波、振荡雷电波，振荡操作波、线路绝缘子陡波，合成绝缘子陡波和变压器感应操作波共八种冲击电压波形，技术指标符合国家标准和IEC标准的规定，己通过部级鉴定，主要技术性能处于国内领先地位，达到国际同类产品的先进水平。
产品别名
冲击发生器，雷电冲击发生器，电流发生器，脉冲发生器，冲击电流发生器，雷电冲击，冲击电压
产品特性
1、成套装置配置完整，电压等级齐全；
2、冲击电压发生器回路电感小，并采取带阻滤波措施，在大电容量负载下仍能产生标准冲击电压波形，负载能力大，国内首创，并运用于科研和企业单位；
3、电压利用系数高，雷电波和操作波分别不低于90％和80％；
4、冲击本体结构紧凑，外形美观，调波方便，操作简单，同步性能好，动作可靠；
5、采用可控硅或LC恒流充电自动控制技术，自动化程度高，抗干扰能力强；
6、截波延时采用电子延时可调电路L—C延时方式；

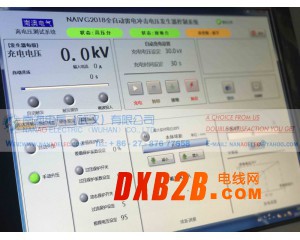

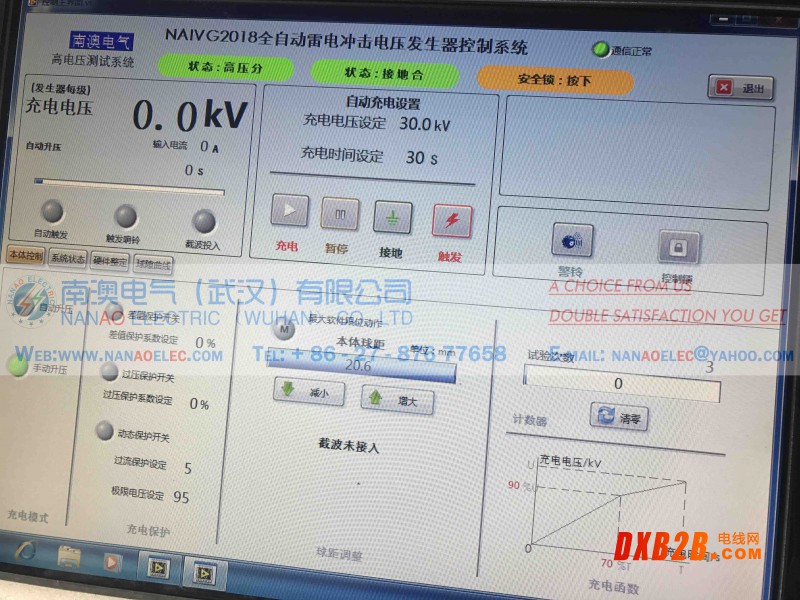

7、计算机控制测量(光纤PLC)系统。
Product introduction
NAIVG impulse voltage generator is mainly used in electric power equipment such as power transformers, transformers, combined electrical composite insulators, surge arrester and other tested objects to carry out the impulse voltage test for full wave of lightning impulse voltage, chopped wave of lightning impulse voltage, operating shock wave and steep wave, testing insulation performance.
1200kV / 2400kV and 4800kV series impulse voltage generator can produce three kinds of impulse voltage waveform: standard lightning full-wave, operating wave and lighting chopped wave. 1200 series impulse voltage generator can produce eight kinds of impulse voltage waveform: standard lighting wave, operating wave, lighting chopped wave, oscillating lighting wave, oscillating operating wave, steep wave of line insulator, steep wave of composite insulators and transformer inductive operation wave. The technical indicators is in line with national standards and IEC standards, has passed the ministerial appraisal, the main technical performance is in the domestic leading position, has reached the advanced level of international similar products.
